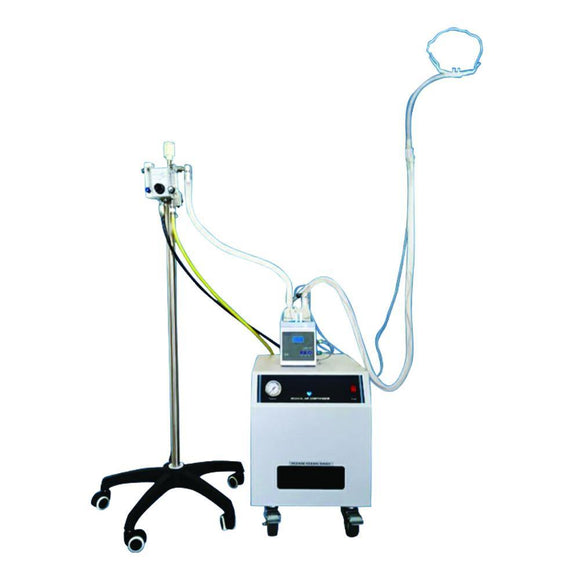

High flow Nasal Cannula
The HNFC Machine is an assembly of
1. Respiratory Humidifier can set low medium and high Temp.
2. Air O2 blender which has option 0.1-1LPM, 1-6LPM, 6-60LPM, 6-120 LPM any option can choose.
3. Stand with wheels and brake system.
4. Spotarm for respiratory tubing.
5. Heated wire tubing neonatal-adult any option can choose.
6. High flow nasal cannula.
7. High pressure air o2 hose.
Humidifier:-
1.Control function: Three-level temperature control
2.Protection function: dry and over-heat protection
3.Temperature monitor: digital display 0°C~75°C
4.Application temperature: 30°C~75°C
5.Maximum temperature: 75°C
Technical specification:-
1.Input rate: ≤85W+15%
2.Size: 135*170*150 ( mm )
3.Working temperature: 5°C~40°C
4.Storage relative temperature: -10°C~+40°C
5.Storage relative humidity: ≤90%
6.Atmospheric pressure: 860hPa~1060hPa
Chamber:-
1.Maximum water capacity: 280ml(PN-2000F Adult)
2.Maximum water capacity: 230ml(PN-2000FA Infant)
3.Maximum flow: 180L/min
4.Maximum working pressure: 2kPa
5.Inlet: 15mm F
6.Outlet: 22mm M

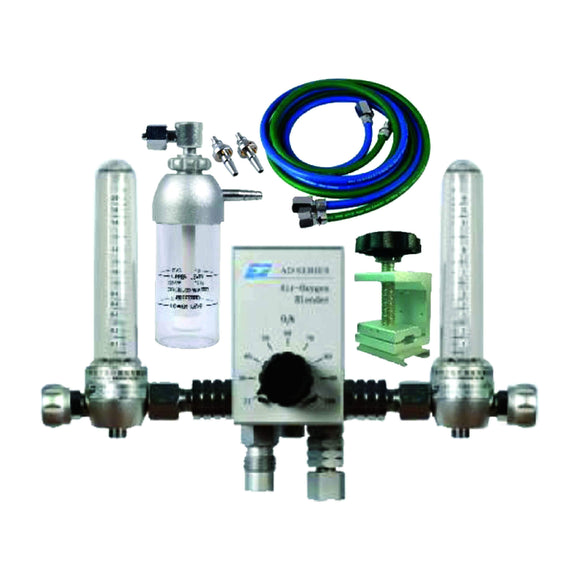

Blender parameters:-
| Model info |
specification |
| Oxygen concentration rang |
21-100% |
| FiO2 accuracy |
+ - 3% of full scale |
| Alarm activation |
Gas source pressure difference 0.1MPA/14.5PSI |
| Alarm type |
>57dbs BEEPING ALARM |
| Outlet Flow range |
2-120LPM |
| Auxiliary outlet flow range |
2-120LPM |
| Bleed flow at 50PSI |
3-6LPM |
| Inlet gas supply pressure |
0.35-0.45MPA (50-65PSI) |
| Operating temperature |
5 TO 40°C |
| Storage temperature |
-40 to 55°C |
| Operating humidity |
≤80% non condensing |
| Storage humidity |
≤95% non condensing |
| MDD -Product classification |
Class IIb |
| Quality management system |
ISO13485: 2016 |
| Device specification standard |
TYPE B |
| Dimension (include fittings) |
6.8*8.8*7.5cm |
| Number of ports |
Double/Single option |
Air Compressor:-
A compact medical-grade air compressor intended for the delivery of clean and dry compressed air Adopting highly efficient oil-free compressor core and multi-level filtration and dehydration design Our compressors are compatible with all the Ventilators ( with external Air Source) and
are very inexpensive. Our compressors have been running successfully with all the leading brands of Ventilators and HFNC.
