10 Lead TMT ECG Cable Compatible with RMS Clip type 25 Pin
Rs. 1,750.00 Rs. 5,000.00
SKU: ECG-1115 Happy Hearts
Product Specifications
| COMPATIBILITY | |
| Manufacturer | Model |
| RMS | |
| Technical Specification | |
| SKU | ECG-1115 |
| Category | ECG |
| Certifications | ISO Certified, ISO10993-1, 5, 10:2003E,RoHS Compliant |

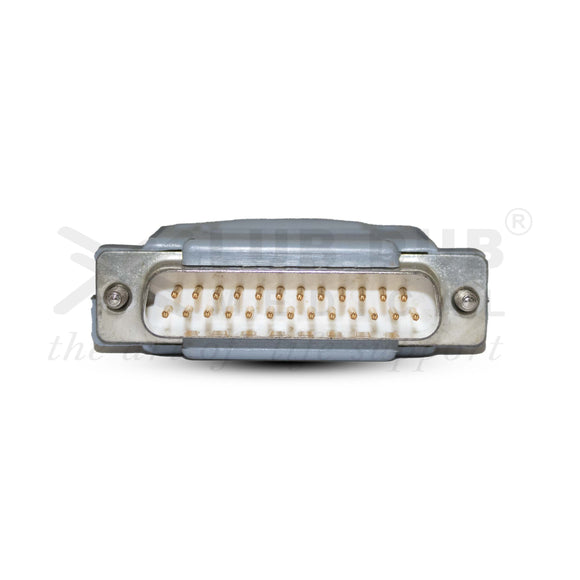

| Machine side connector | RMS 25 Pin ECG Connector |
| Patient side connector | Clip type |
| Latex-free | Yes |
| Lead Cable Color | Bone Gray |
| Lead Cable Diameter | 3.5 mm |
| Lead Cable Length Limb | 1 Meter |
| Main Cable Length | 2 Meter |
| Lead Cable Material | PVC Jacket |
| Lead Color Coding | IEC |
| Lead Number | 10 |
| Packaging Type | Poly Pouch |
| Packaging Unit | 1 No |
| Patient Size | Adult/Pediatric/Neonatal |
| Sterile | No |
| Warranty | 12 months |
| Weight | 300 g |
10 Lead TMT ECG Cable Compatible with RMS Clip type 25 Pin

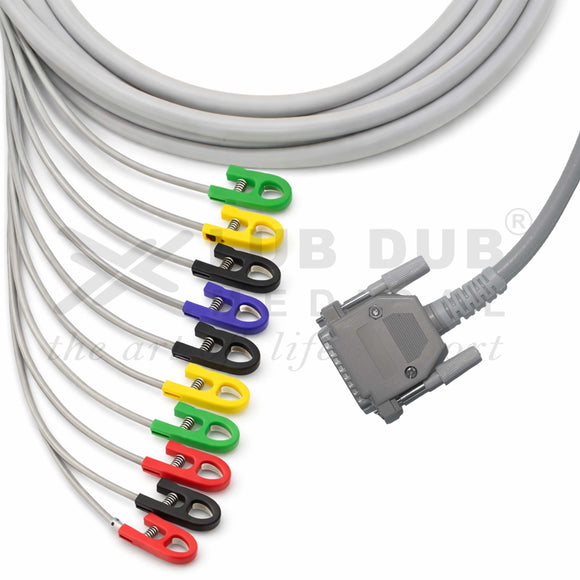

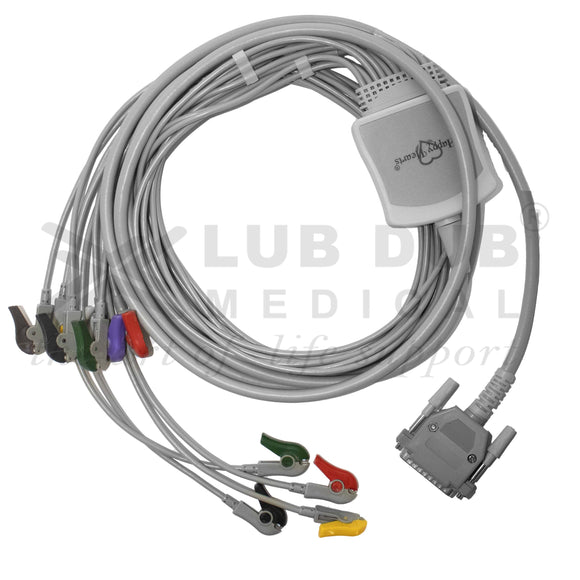

The 10 Lead TMT ECG Cable Compatible with RMS Clip Type 25 Pin is designed to provide stable and accurate ECG signal transmission during treadmill stress testing and cardiac monitoring. This cable is specifically engineered for RMS TMT ECG Machine with a 25-pin device connector, ensuring secure connectivity and dependable performance during diagnostic procedures.
Featuring a standard 10-lead ECG configuration, the cable allows healthcare professionals to monitor cardiac activity effectively during stress tests and routine ECG examinations. The clip type electrode connectors provide quick and firm attachment to ECG electrodes, ensuring consistent signal quality even when patients are moving during treadmill testing.
Manufactured using high-quality medical-grade materials, the cable offers durability, flexibility, and resistance to frequent clinical use. Its reinforced insulation helps reduce signal interference, ensuring accurate ECG readings in hospitals, cardiology departments, and diagnostic centers.
Key Features
-
Compatible with RMS TMT ECG Machine
-
25 pin device connector
-

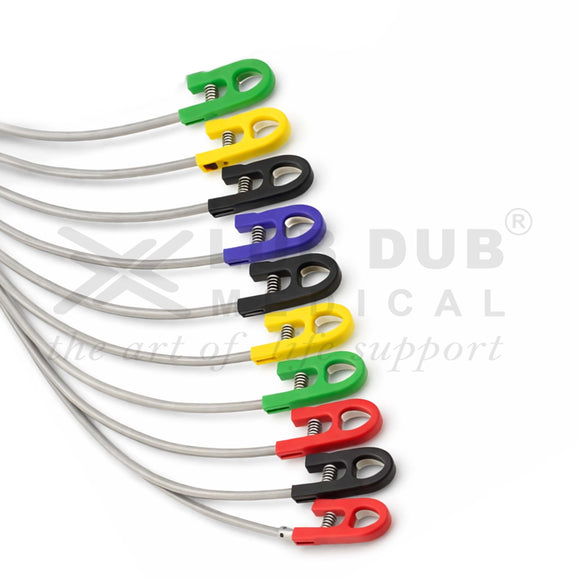

Clip type electrode connectors
-
Standard 10 lead ECG configuration
-
Durable medical-grade cable construction
-
Flexible cable designed for TMT testing
-
Reliable and stable ECG signal transmission
-
Suitable for hospitals and diagnostic centers
Applications
-
Treadmill Stress Test (TMT)
-
ECG diagnostic testing
-
Cardiology departments
-
Hospitals and clinics
-
Diagnostic laboratories
-
Routine cardiac examinations
