Product Specification

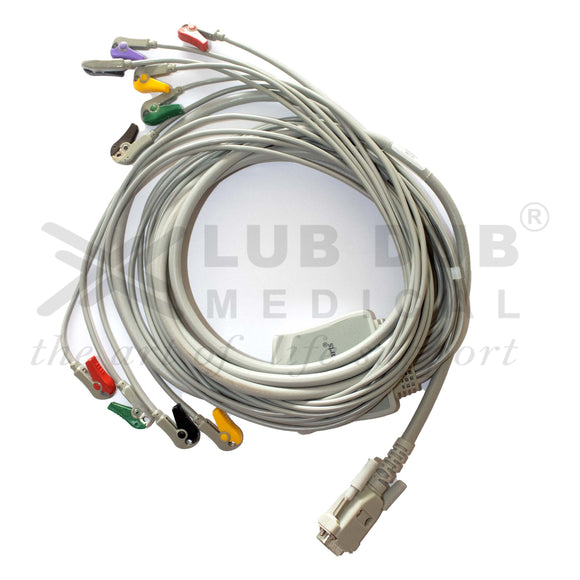

10 Lead ECG Cable Compatible with Clarity 15 Pin Clip type

The 10 Lead ECG Cable Compatible with Clarity 15 Pin Clip Type is a high-quality ECG patient cable designed for accurate cardiac monitoring and diagnostic procedures in hospitals, clinics, and diagnostic centers. This ECG cable is specifically engineered to connect seamlessly with Clarity ECG machines, ensuring stable signal transmission and reliable ECG recordings during patient monitoring.

Electrocardiography (ECG) is a widely used diagnostic test that records the electrical activity of the heart. A 10-lead ECG cable enables standard 12-lead ECG monitoring, which includes six chest leads and four limb leads. This configuration allows healthcare professionals to assess heart rhythm, detect arrhythmias, identify myocardial infarctions, and evaluate other cardiovascular conditions.

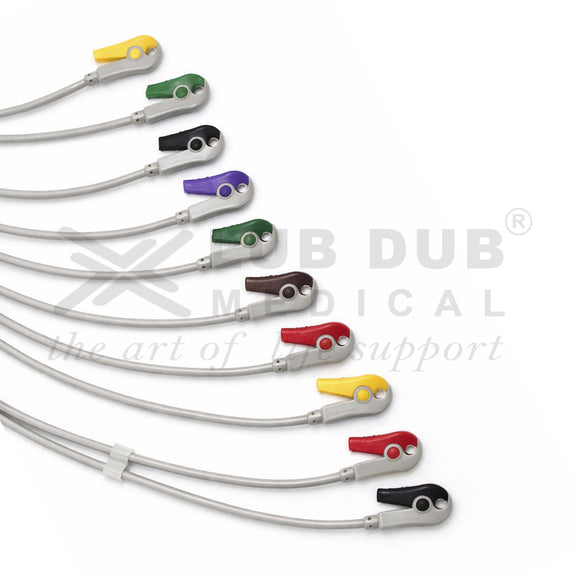

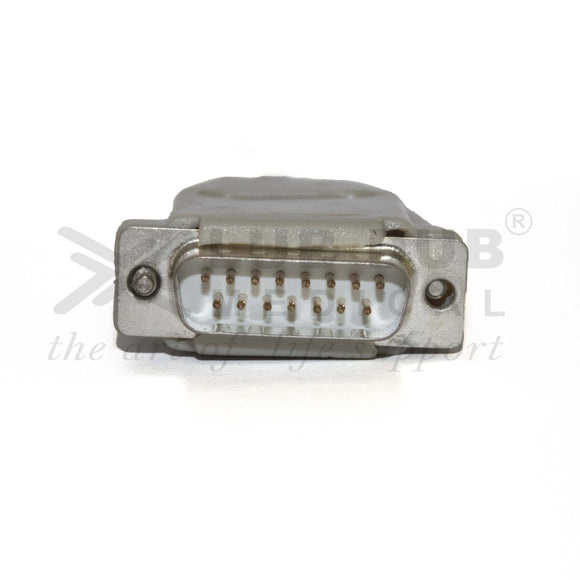

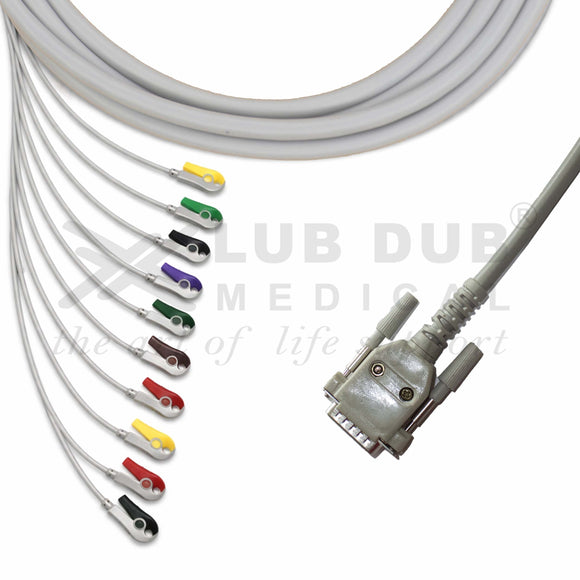

The cable features a 15-pin machine-side connector designed to securely connect with compatible Clarity ECG systems. On the patient side, it uses clip-type electrode connectors, which easily attach to ECG electrodes or adapters and provide a firm connection during ECG recording. Clip connectors are commonly used in clinical settings because they allow quick attachment and removal while maintaining consistent signal quality.

Manufactured using medical-grade PVC insulation, the cable offers durability, flexibility, and resistance to wear caused by repeated clinical use. The trunk cable generally measures approximately 2 meters, while individual lead wires measure about 1 meter, allowing comfortable electrode placement and sufficient movement during ECG procedures.

The cable is suitable for adult and pediatric patients, making it a versatile solution for cardiology departments, ICUs, emergency wards, diagnostic laboratories, and preventive health screening programs. Its color-coded lead wires help healthcare professionals quickly identify correct electrode placement, improving efficiency during ECG testing.

Compatible Clarity ECG models may include devices such as Clarity ECG-100, True Beat 100, True Beat 200, and other Clarity ECG systems, depending on connector compatibility.

Key Features

• Compatible with Clarity ECG machines

• 10-lead ECG cable supporting standard 12-lead ECG monitoring

• 15-pin ECG machine connector for secure connection

• Clip-type electrode connectors for stable electrode attachment

• Medical-grade PVC insulation for durability and flexibility

• Color-coded lead wires for easy electrode placement

• Shielded cable design to reduce electrical interference

• Suitable for adult and pediatric patient monitoring

• Designed for daily clinical use in healthcare facilities

Applications

• Hospitals and multi-specialty healthcare centers

• Cardiology departments and heart clinics

• Diagnostic laboratories and ECG testing centers

• Emergency rooms and intensive care units (ICU)

• Preventive health screening programs

• Medical colleges and healthcare training institutes
