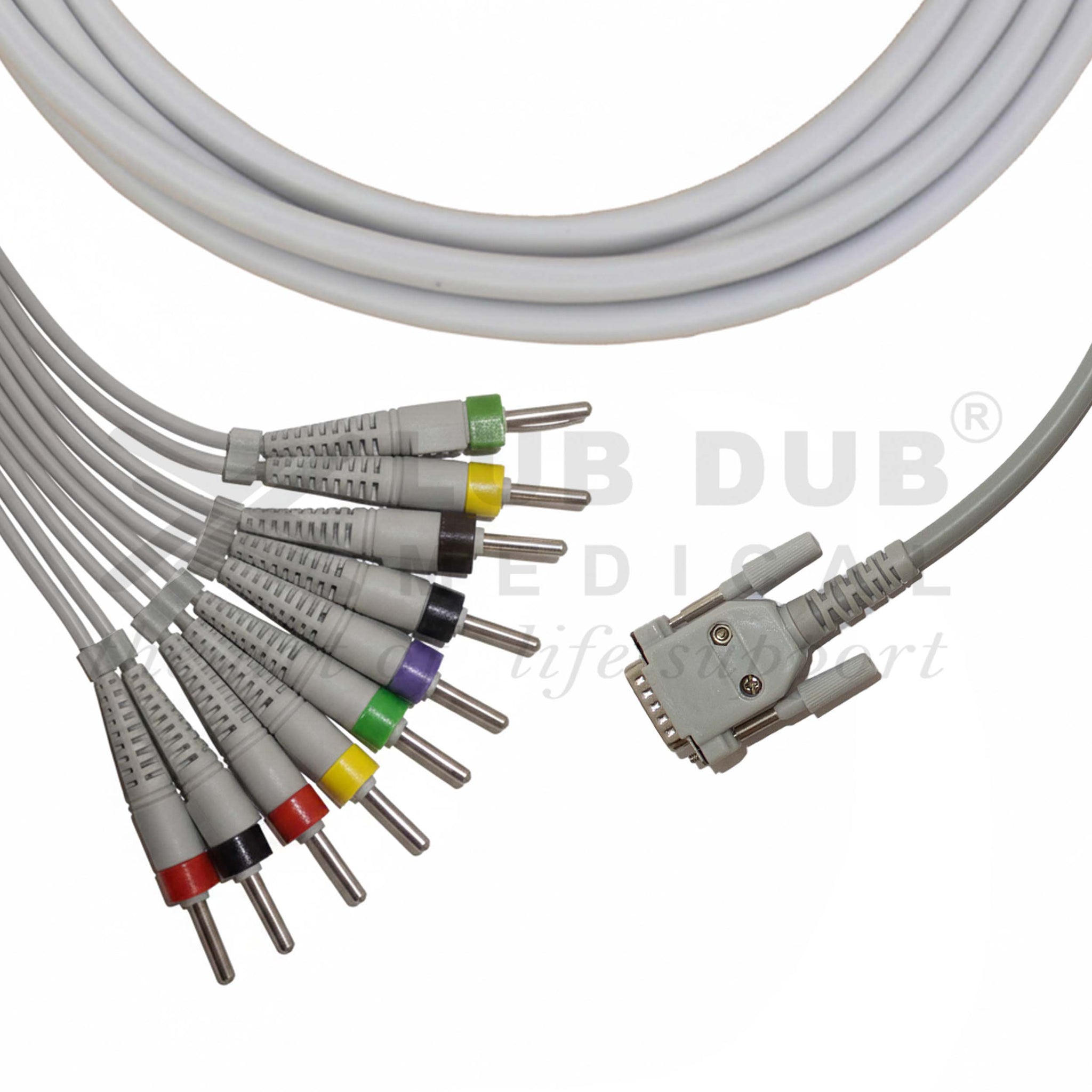

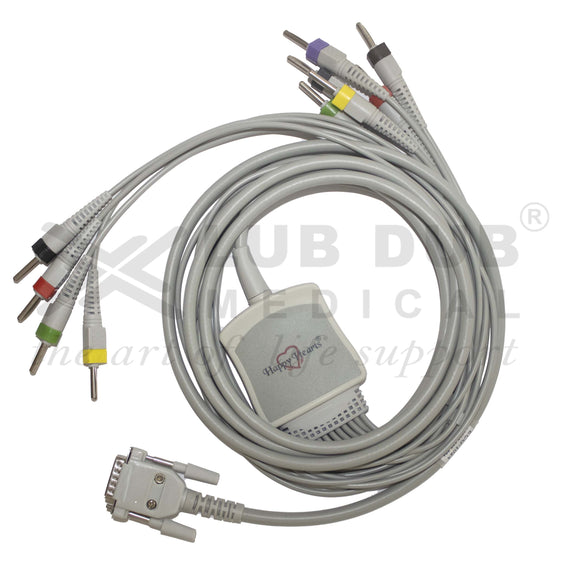

10 Lead ECG Cable Compatible with Clarity 4mm 15 pin Banana type
Rs. 1,600.00 Rs. 5,000.00
SKU: ECG 1024 Happy Hearts
Product Specifications
| COMPATIBILITY | |
| Manufacturer | Model |
| Clarity | |
| Technical Specification | |
| SKU | ECG-1024 |
| Category | ECG |
| Machine side Connector |
Clarity 15 Pin ECG Connector
|
| Patient side connector | 4mm Banana type |
| Latex free | yes |
| Cable colour | Bone grey |
| Patient size | Adult/pediatric |
| Trunk Cable diameter | 5mm |
| Lead cable diameter | 3.5mm |
| Trunk cable length | 2 mtrs |
| Lead Cable length | 1mtrs |
| Cable material | PVC |
| Lead Number | 10 |
| Packaging unit | 1 |
| Sterile | No |
| weight | 500g |
10 Lead ECG Cable Compatible with Clarity 4mm 15 pin Banana type
The 10 Lead ECG Cable Compatible with Clarity – 15 Pin 4mm Banana Type is designed to deliver accurate and reliable ECG signal transmission for routine cardiac monitoring and diagnostic procedures. This high-quality patient cable works seamlessly with the Clarity ECG Machine, making it suitable for hospitals, clinics, and diagnostic laboratories.

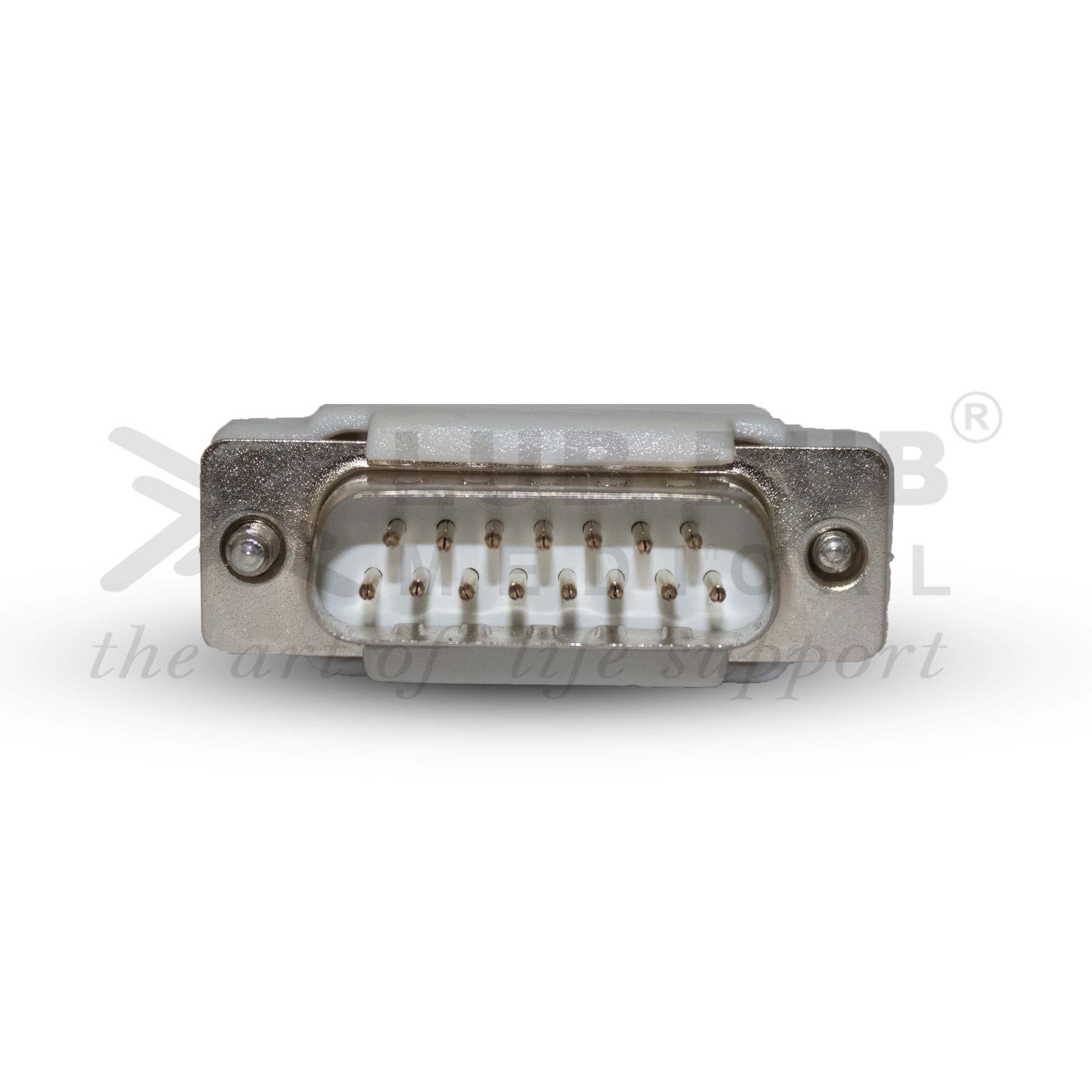

The cable features a 15-pin machine connector that securely connects to the ECG machine, ensuring stable communication between the patient cable and the device. The 4mm banana type connectors allow quick and easy attachment with ECG electrodes or lead wires.
With its standard 10-lead ECG configuration, this cable enables healthcare professionals to capture precise cardiac signals necessary for electrocardiogram testing. Manufactured using medical-grade materials, the cable is durable, flexible, and designed to withstand daily clinical use.
Its high-quality insulation helps minimize electrical interference, ensuring clear and consistent ECG readings during patient monitoring and cardiac diagnosis.
Key Features
-
Compatible with Clarity ECG Machine
-
10 Lead ECG patient cable
-
15 Pin machine connector
-

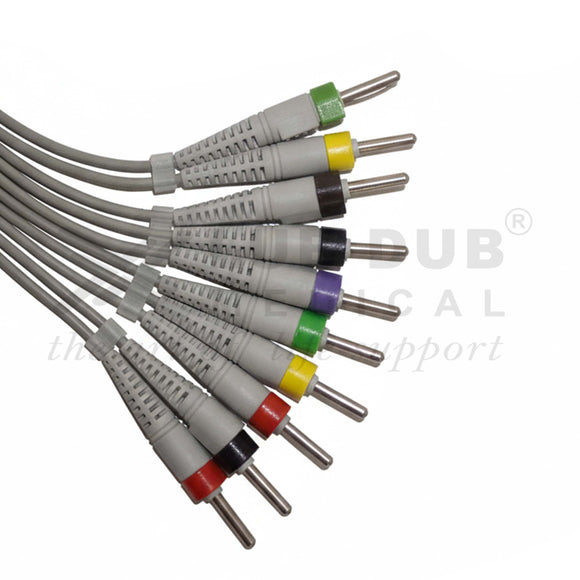

4mm banana type electrode connectors
-
Durable medical-grade cable construction
-
Flexible and lightweight design
-
Reliable ECG signal transmission
-
Suitable for hospitals and diagnostic centers
Applications
-
Routine ECG monitoring
-
Cardiac diagnostic testing
-
Hospitals and clinics
-
Diagnostic laboratories
-
Cardiology departments
-
Patient cardiac health assessment
