Technical Specifications
| COMPATIBILITY | |
| Manufacturer | Model |
| RMS | |
| Technical Specification | |
| SKU | ECG-1119 |
| Category | ECG |
| Certifications | ISO Certified, ISO10993-1, 5, 10:2003E,RoHS Compliant |
| Machine side connector | RMS ECG Connector |
| Patient side connector | Snap type |
| Latex-free | Yes |
| Lead Cable Color | Bone Gray |
| Lead Cable Diameter | 3.5 mm |
| Lead Cable Length Limb | 1 Meter |
| Main Cable Length | 2 Meter |
| Lead Cable Material | PVC Jacket |
| Lead Color Coding | IEC |
| Lead Number | 10 |
| Packaging Type | Poly Pouch |
| Packaging Unit | 1 No |
| Patient Size | Adult/Pediatric/Neonatal |
| Sterile | No |
| Warranty | 12 months |
| Weight | 300 g |

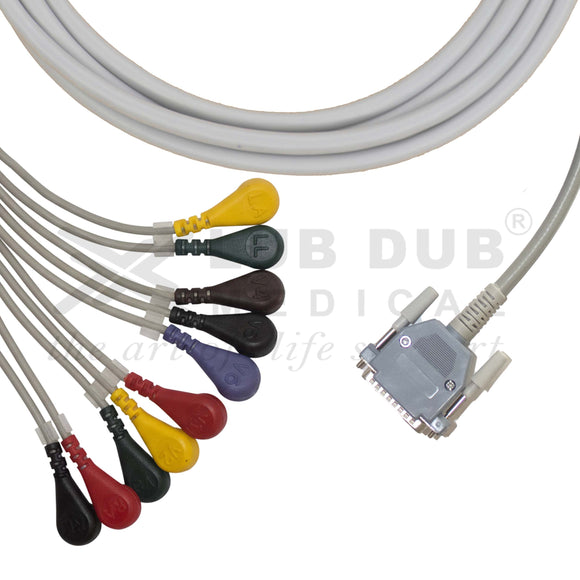

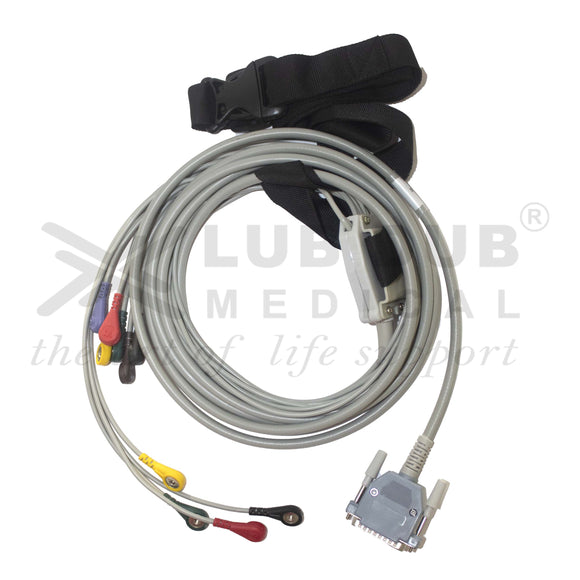

10 Lead TMT ECG Cable RMS Snap Type 25 Pin
The 10 Lead TMT ECG Cable RMS Snap Type 25 Pin is designed for accurate and reliable ECG signal transmission during Treadmill Stress Testing (TMT) procedures. This cable is compatible with RMS ECG machines and features a 25 Pin machine-side connector with snap type patient connectors for secure electrode attachment.
Manufactured using high-quality medical-grade materials, this TMT ECG cable ensures excellent durability, flexibility, and stable signal performance even during high-motion stress test procedures. The snap connectors provide firm electrode connection, helping maintain consistent ECG readings throughout the test.
This cable is widely used in cardiology departments, hospitals, diagnostic centers, and cardiac stress testing labs for professional ECG monitoring during exercise testing.
Key Features
-
Compatible with RMS TMT ECG machines
-
10 lead ECG configuration for complete cardiac monitoring
-

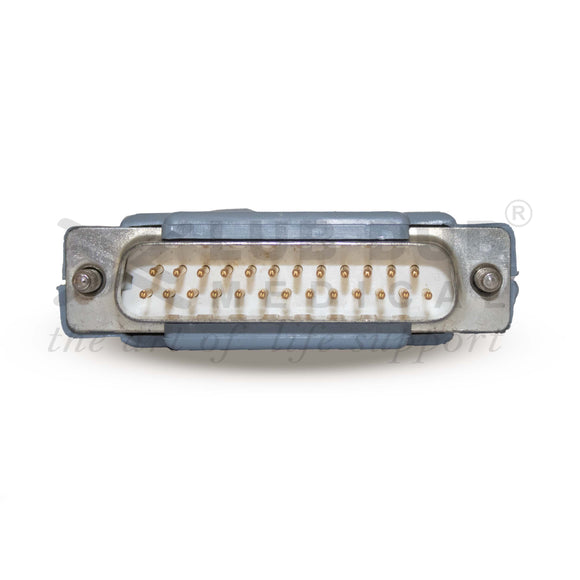

25 Pin machine-side connector
-

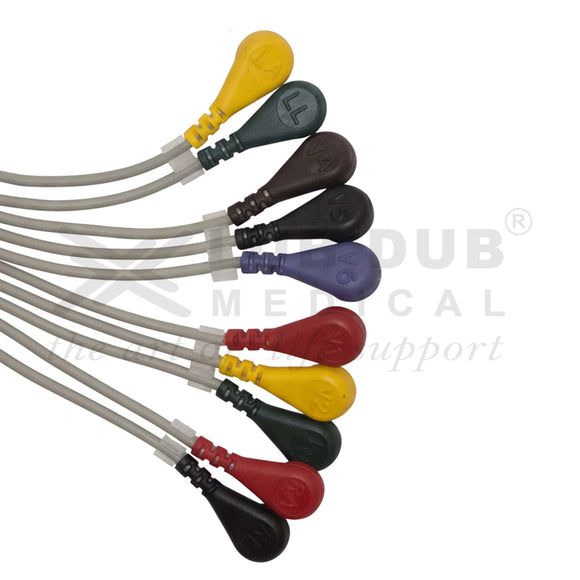

Snap type electrode connectors
-
High-quality medical-grade cable
-
Durable and flexible for treadmill testing
-
Reliable ECG signal transmission
-
Latex-free and patient safe
Applications
-
Treadmill Stress Test (TMT)
-
Cardiac diagnostic testing
-
Hospitals and cardiology departments
-
ECG laboratories
-
Diagnostic centers
-
