Product Specification

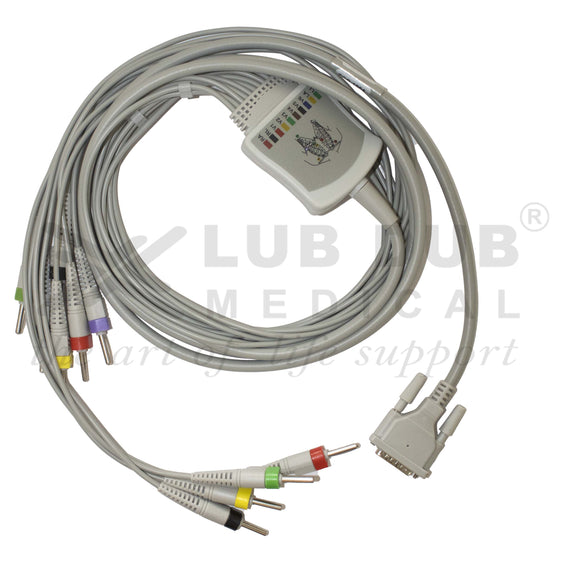

10 Lead ECG Cable Compatible with Aspen 15 Pin 4mm Banana Type

The 10 Lead ECG Cable Compatible with Aspen 15 Pin 4mm Banana Type is a professional-grade ECG patient cable designed for precise cardiac monitoring and dependable signal transmission. This cable is engineered to work seamlessly with Aspen ECG machines, making it an ideal replacement or accessory cable for hospitals, cardiology clinics, diagnostic laboratories, and healthcare facilities performing electrocardiography tests.

Electrocardiography (ECG or EKG) is one of the most important diagnostic tools used to monitor the electrical activity of the heart. Accurate ECG readings are essential for detecting heart rhythm abnormalities, myocardial infarction, and other cardiovascular conditions. A 10-lead ECG cable system enables standard 12-lead ECG monitoring, which includes four limb leads and six chest leads. This configuration provides a comprehensive view of cardiac electrical activity from multiple angles, allowing physicians to make accurate diagnoses.

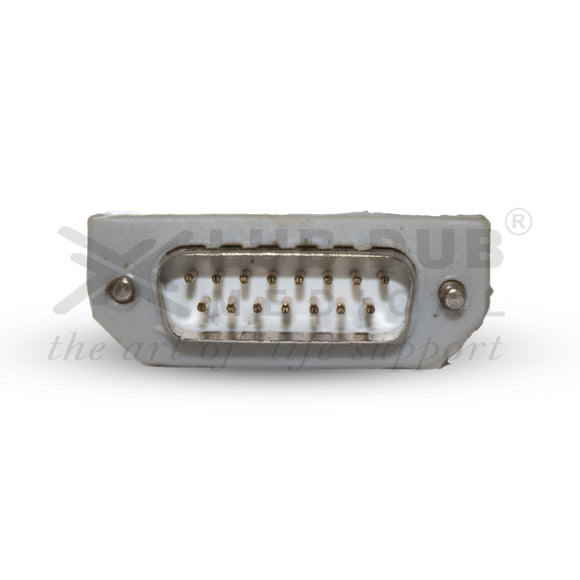

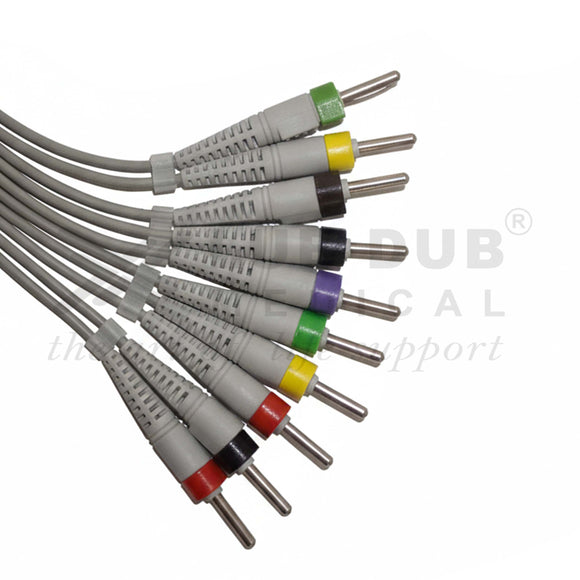

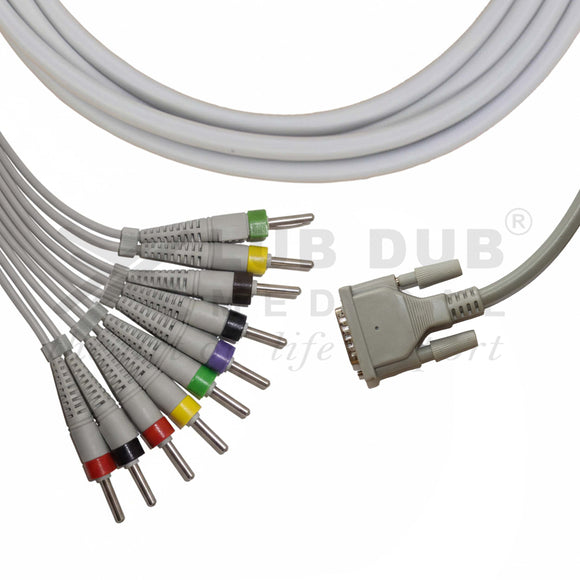

This ECG cable features a 15-pin machine-side connector that securely attaches to compatible Aspen ECG machines. The patient side of the cable includes 4mm banana plug connectors, which are widely used in ECG systems to connect lead wires with clip electrodes or suction electrodes. Banana connectors provide a stable electrical interface, ensuring consistent signal transmission and reducing the risk of signal loss during patient monitoring.

The cable is constructed using high-quality medical-grade materials such as PVC or TPU insulation, which ensures durability, flexibility, and long service life. The trunk cable is typically designed with a length of around 2 meters, while individual lead wires measure approximately 1 meter each, providing sufficient reach for proper electrode placement on the patient’s body during ECG procedures.

For ease of use and correct electrode placement, the cable includes color-coded lead wires following AHA or IEC standards. These standardized color codes allow healthcare professionals to quickly identify limb leads and chest leads, improving efficiency during ECG setup and reducing the chance of connection errors.

The cable design also incorporates shielded wiring technology, which minimizes electromagnetic interference from surrounding medical equipment. This ensures clear ECG signals and accurate cardiac waveform recordings even in busy hospital environments where multiple electronic devices are operating simultaneously.

Because of its robust construction and compatibility with widely used ECG machines, this cable is suitable for use in cardiology departments, intensive care units (ICU), emergency rooms, outpatient diagnostic centers, and preventive cardiac screening programs. It is also commonly used in medical colleges and training institutes where ECG monitoring equipment is required for educational purposes.

Key Features

• Compatible with Aspen ECG monitoring systems

• 10-lead ECG cable supporting standard 12-lead ECG diagnostics

• 15-pin ECG machine connector for secure device connection

• 4mm banana plug connectors for electrode adapters

• High-quality medical-grade cable insulation

• Flexible cable design for patient comfort and ease of use

• Color-coded lead wires for quick and accurate electrode placement

• Shielded cable structure to reduce electrical interference

• Durable construction for long-term clinical use

• Suitable for adult and pediatric ECG monitoring

Applications

• Hospitals and multi-specialty healthcare facilities

• Cardiology departments and heart clinics

• Diagnostic laboratories performing ECG testing

• Emergency rooms and intensive care units (ICU)

• Preventive health check-up and cardiac screening camps

• Medical training institutes and simulation laboratories
