Product Specification

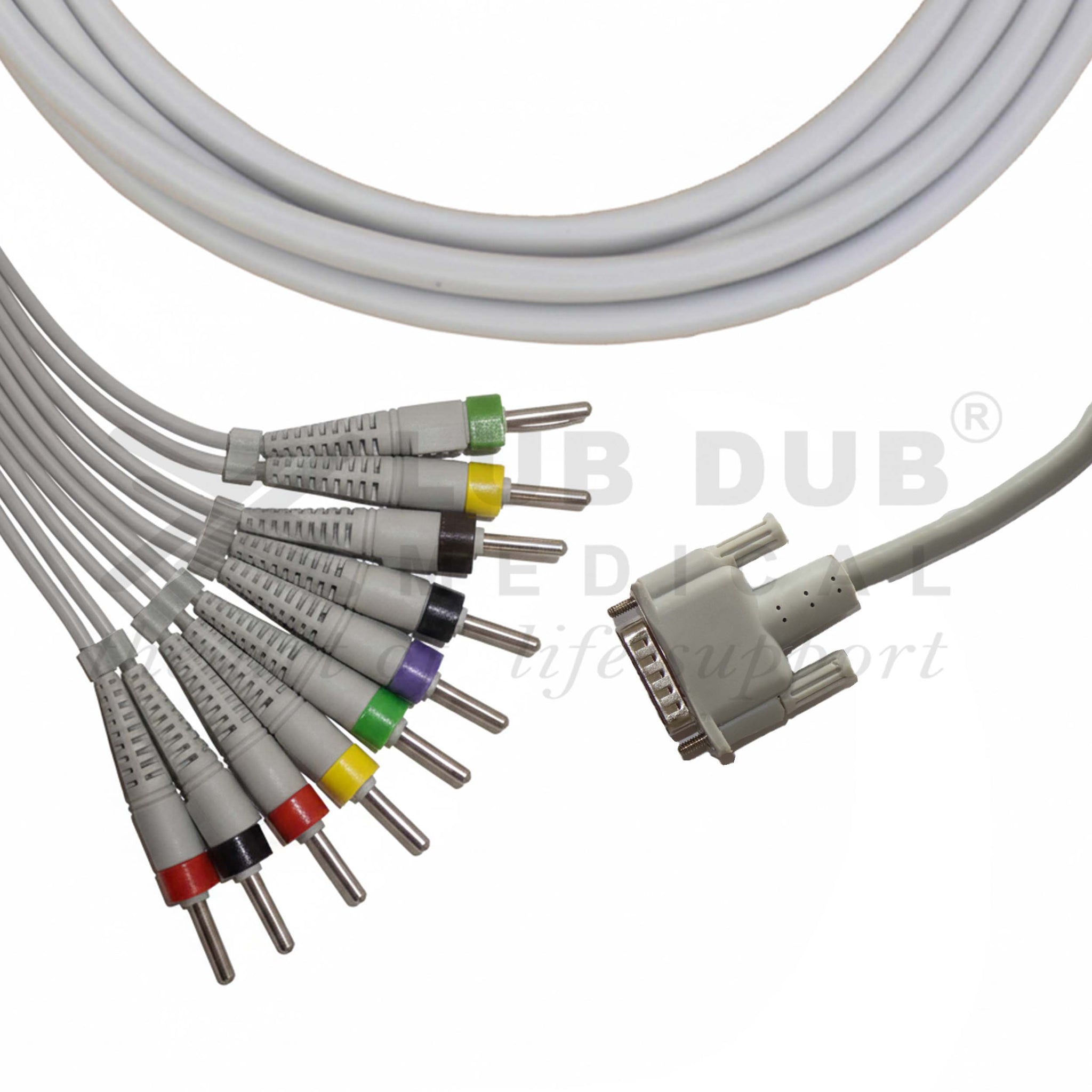

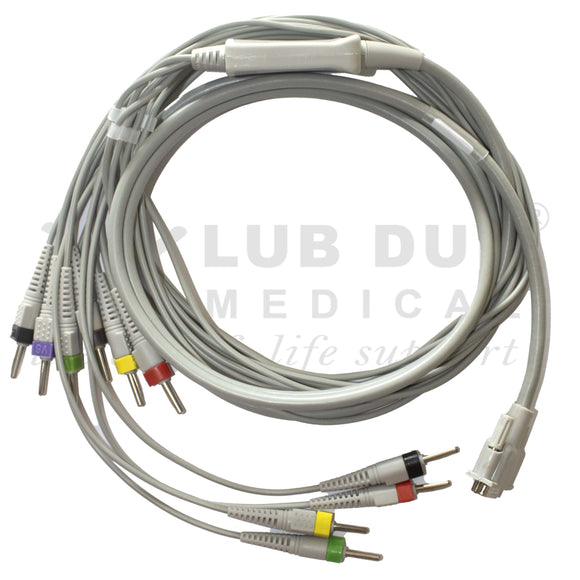

10 Lead ECG Cable Compatible with HP 15 Pin 4mm Banana type

The 10 Lead ECG Cable Compatible with HP 15 Pin 4mm Banana Type is a high-quality medical accessory designed for accurate electrocardiogram (ECG) monitoring and reliable signal transmission during cardiac diagnostic procedures. This ECG patient cable is engineered to work seamlessly with HP ECG machines such as PageWriter models, making it an ideal replacement cable for hospitals, diagnostic centers, cardiology departments, and clinics.

The cable features a 15-pin machine-side connector that securely connects to compatible ECG machines and 4mm banana-type patient connectors used for attaching ECG electrodes placed on the patient’s limbs and chest. These connectors ensure proper electrical contact and stable ECG signal transmission during patient monitoring.

This cable supports standard 12-lead ECG monitoring through a 10-lead configuration, enabling healthcare professionals to capture detailed electrical activity of the heart. By recording signals from multiple leads, clinicians can diagnose conditions such as arrhythmias, ischemia, myocardial infarction, and other cardiovascular abnormalities.

Manufactured using medical-grade PVC insulation, the cable offers excellent flexibility, durability, and safety for repeated clinical use. Typical cables of this type include 10 lead wires with a trunk cable length of approximately 2 meters and lead wires around 1 meter, allowing comfortable patient positioning during ECG testing.

The cable also incorporates double-shielded wiring, which reduces electrical interference and motion artifacts, ensuring accurate ECG waveform recordings. Because of its durable design and reliable performance, this ECG cable is widely used in hospitals, cardiac care units, diagnostic laboratories, emergency departments, and medical training institutions.

Key Features

• Compatible with HP ECG machines (PageWriter series)

• 10 lead ECG cable supporting standard 12-lead ECG monitoring

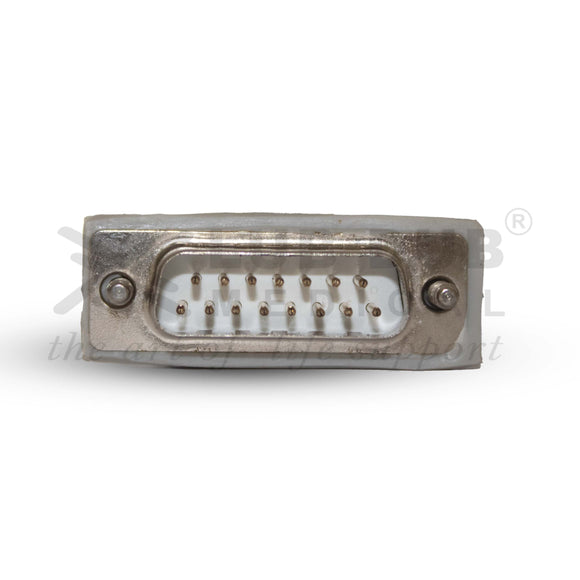

• 15-pin ECG machine connector

• 4mm banana electrode connectors

• Medical-grade cable insulation for safety and durability

• Double shielding to reduce signal interference

• Flexible cable design for improved patient comfort

• Color-coded lead wires for correct electrode placement

Applications

• Routine ECG diagnostic testing

• Cardiology departments and heart care centers

• Diagnostic laboratories and clinics

• Emergency cardiac monitoring

• ICU and patient monitoring units

• Preventive cardiac screening programs

• Biomedical training institutions and medical colleges
