10 Lead ECG Cable Compatible with RMS 25 Pin 4mm Banana type
Rs. 1,200.00 Rs. 5,000.00
SKU: ECG-1081 Happy Hearts
Product Specifications
| COMPATIBILITY | |
| Manufacturer | Model |
| RMS | |
| Technical Specification | |
| SKU | ECG-1081 |
| Category | ECG |
| Machine side Connector |

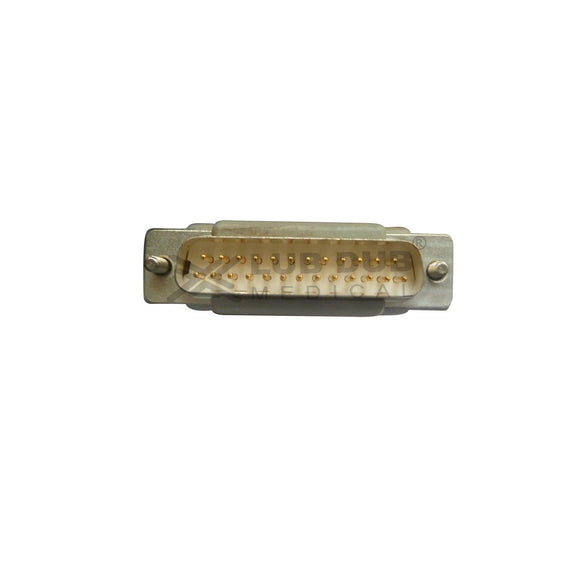

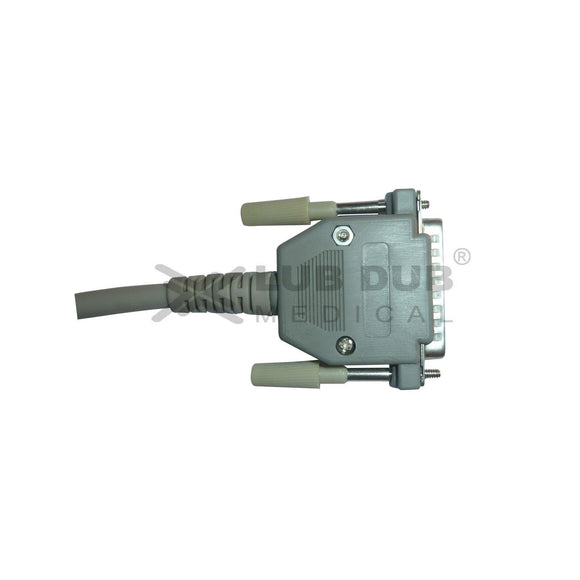

RMS 25 Pin ECG Connector
|
| Patient side connector | type |
| Latex free | yes |
| Cable colour | Bone grey |
| Patient size | Adult/pediatric |
| Trunk Cable diameter | 5mm |
| Lead cable diameter | 3.5mm |
| Trunk cable length | 2 mtrs |
| Lead Cable length | 1mtrs |
| Cable material | PVC |
| Lead Number | 10 |
| Packaging unit | 1 |
| Sterile | No |
| weight | 500g |

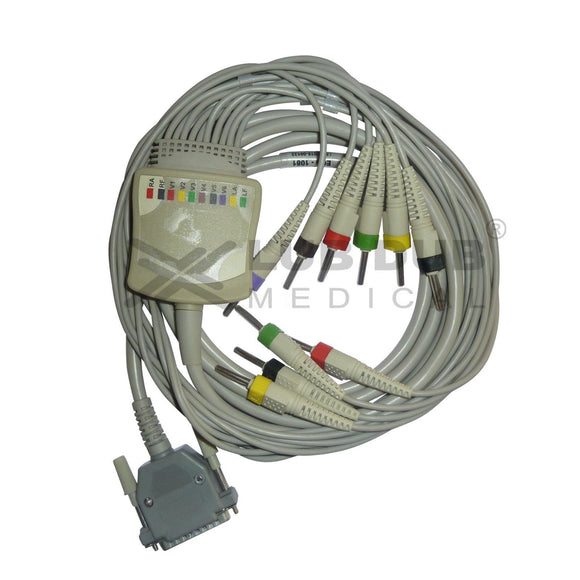

10 Lead ECG Cable Compatible with RMS 25 Pin 4mm Banana type
10 Lead ECG Cable Compatible with RMS 25 Pin 4mm Banana Type is a premium ECG patient cable designed to deliver accurate and stable cardiac monitoring. It is engineered for seamless compatibility with RMS ECG machines, ensuring dependable signal transmission during ECG testing and diagnostics.
This cable features 10 lead wires with 4mm banana-type patient connectors, allowing secure and stable connection to ECG electrodes for standard 12-lead ECG monitoring. The banana connectors provide firm contact with electrodes, helping minimize signal interference and ensuring clear ECG recordings.
Manufactured using medical-grade insulation materials, the cable offers excellent flexibility, durability, and resistance to daily clinical wear. It is suitable for continuous use in hospitals, cardiology clinics, and diagnostic laboratories where reliable ECG accessories are essential.
The RMS compatible ECG patient cable is lightweight, easy to handle, and built for long-term performance in demanding medical environments.
Key Features
-
Compatible with RMS ECG machines
-
10 lead ECG patient cable for standard ECG monitoring
-
25 pin machine connector
-
4mm banana type patient connectors
-
Medical-grade cable insulation
-
Flexible and lightweight design
-
Stable ECG signal transmission
-
Durable and reusable ECG cable
Applications
-
Hospitals and healthcare facilities
-
Cardiology clinics
-
Diagnostic laboratories
-
ECG testing and cardiac diagnostics
-
Routine patient cardiac monitoring
