High Flow Oxygen Therapy System - LubdubBazaar


High Flow Oxygen Therapy System

Rs. 180,000.00 Rs. 349,000.00

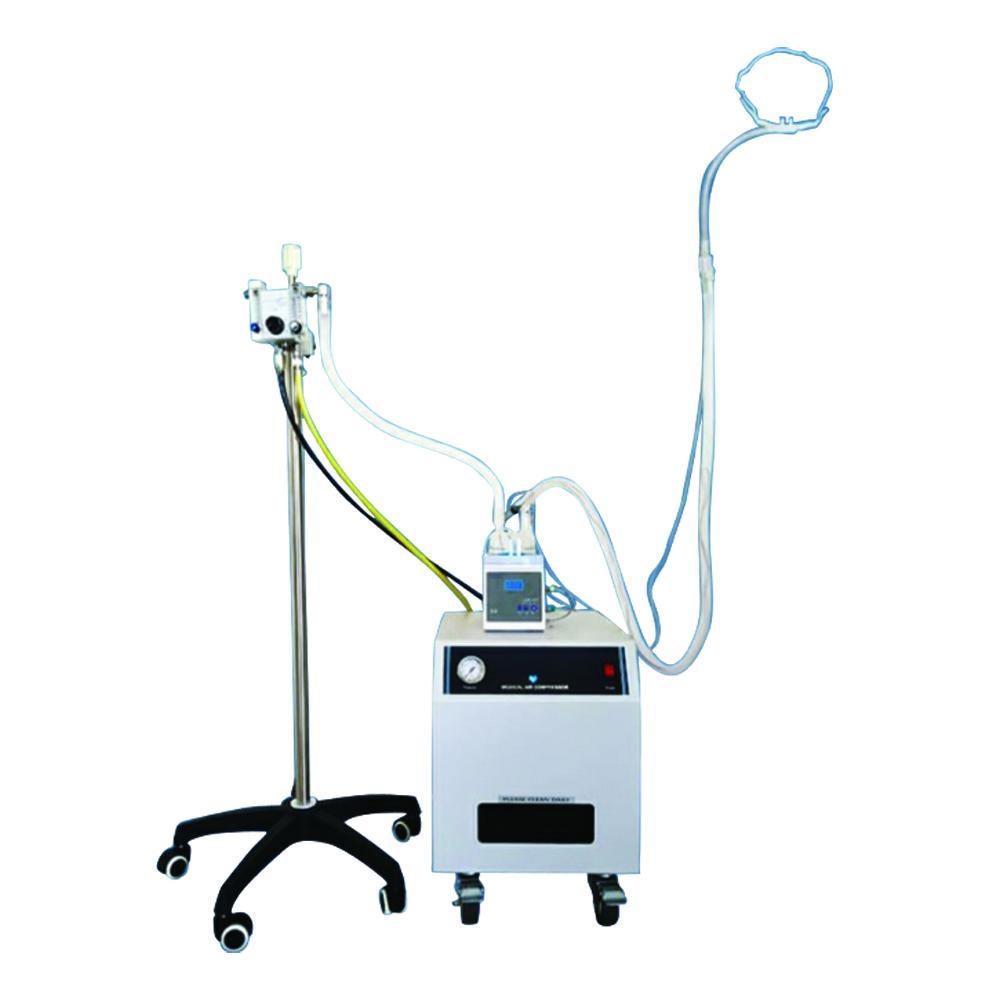

High flow Nasal Cannula
The HNFC Machine is an assembly of
1. Respiratory Humidifier can set low medium and high Temp.
2. Air O2 blender which has option 0.1-1LPM, 1-6LPM, 6-60LPM, 6-120 LPM   any option can choose.
3. Stand with wheels and brake system.
4. Spotarm for respiratory tubing.
5. Heated wire tubing neonatal-adult any option can choose.
6. High flow nasal cannula.
7. High pressure air o2 hose.

1.Control function: Three-level temperature control
2.Protection function: dry and over-heat protection
3.Temperature monitor: digital display 0°C~75°C
4.Application temperature: 30°C~75°C
5.Maximum temperature: 75°C

Technical specification:-
1.Input rate: ≤85W+15%
2.Size: 135*170*150 ( mm )
3.Working temperature: 5°C~40°C
4.Storage relative temperature: -10°C~+40°C
5.Storage relative humidity: ≤90%
6.Atmospheric pressure: 860hPa~1060hPa

1.Maximum water capacity: 280ml(PN-2000F Adult)
2.Maximum water capacity: 230ml(PN-2000FA Infant)
3.Maximum flow: 180L/min
4.Maximum working pressure: 2kPa
5.Inlet: 15mm F
6.Outlet: 22mm M

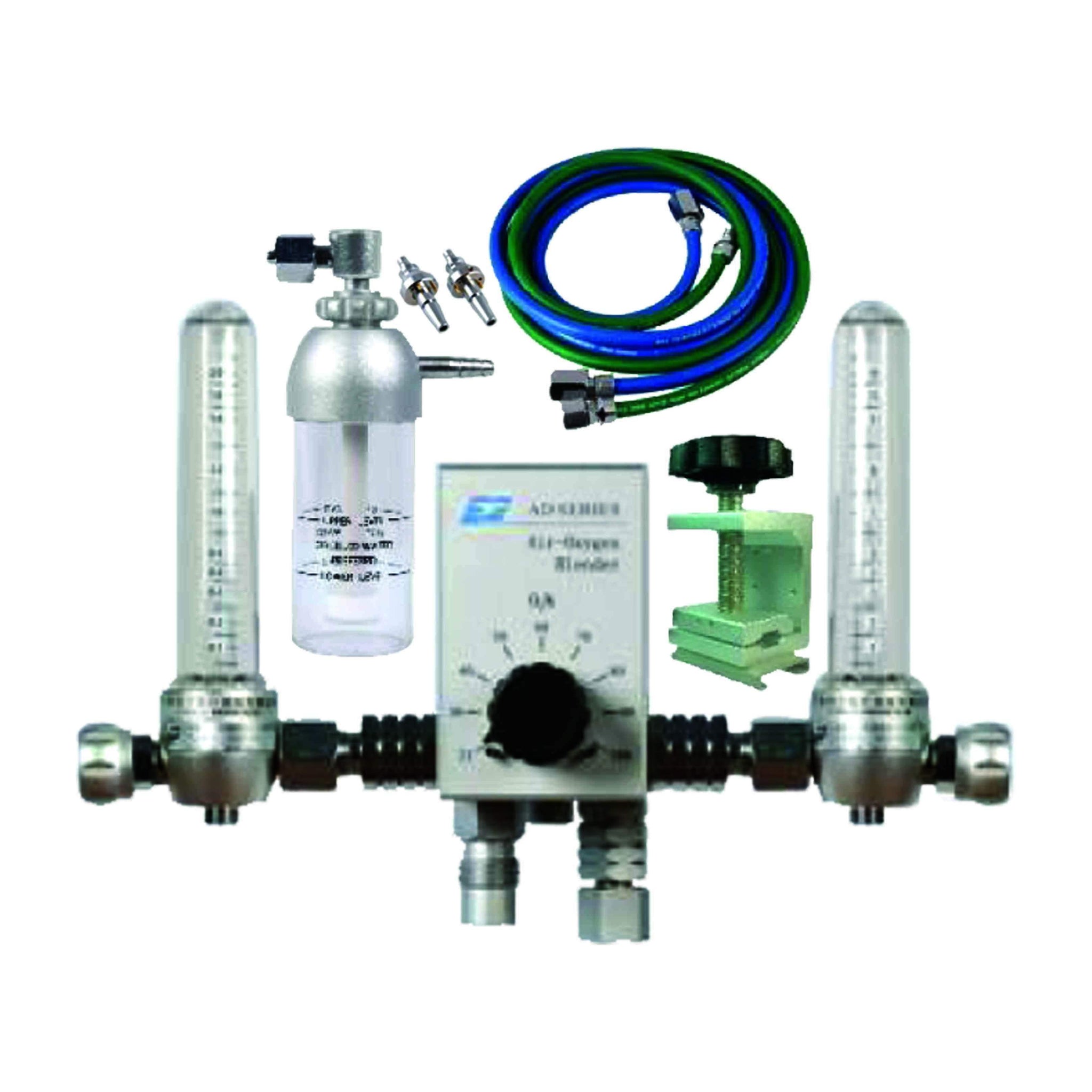

Blender parameters:-

 Model info specification
Oxygen concentration rang  21-100%
FiO2 accuracy  + - 3% of full scale
Alarm activation  Gas source pressure difference 0.1MPA/14.5PSI
Alarm type  >57dbs BEEPING ALARM
Outlet Flow range  2-120LPM
Auxiliary outlet flow range  2-120LPM
Bleed flow at 50PSI  3-6LPM
Inlet gas supply pressure  0.35-0.45MPA (50-65PSI)
Gas inlet fittings  NIST
Operating temperature  5 TO 40°C
Storage temperature  -40 to 55°C
Operating humidity  ≤80% non condensing
Storage humidity ≤95% non condensing
MDD -Product classification  Class IIb
Quality management system  ISO13485: 2016
Device specification standard  TYPE B
Dimension (include fittings)  6.8*8.8*7.5cm
weight  1.5kg
Number of ports  Double/Single option


Air Compressor:-
A compact medical-grade air compressor intended for the delivery of clean and dry compressed air Adopting highly efficient oil-free compressor core and multi-level filtration and dehydration design Our compressors are compatible with all the Ventilators ( with external Air Source) and
are very inexpensive. Our compressors have been running successfully with all the leading brands of Ventilators and HFNC.
